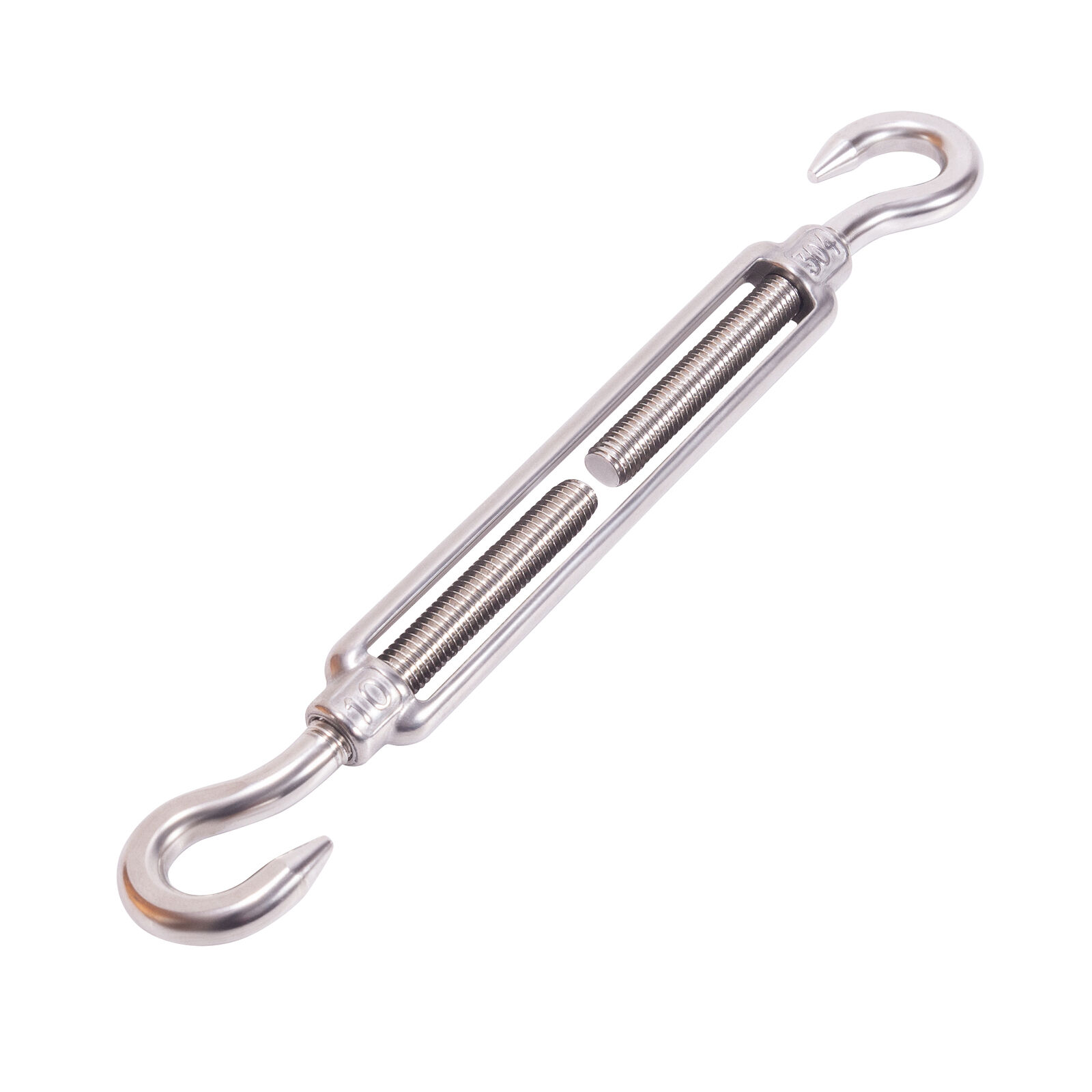

| JIS FRAME TYPE TURNBUCKLES |  |
Item No. | Size | A(mm) | B(mm) | H(mm) | D(mm) | E(mm) | F(mm) | G(mm) | (kg/pc) |
| GZOT-OO-05 | 3/16" | 4.4 | 57 | 70 | 10 | 18.8 | 40 | 60 | 0.04 |
| GZOT-OO-06 | 1/4" | 5.3 | 70 | 90 | 10 | 20.6 | 50 | 71 | 0.063 |
| GZOT-OO-08 | 5/16" | 7.1 | 95 | 120 | 12 | 26.5 | 64 | 91 | 0.137 |
| GZOT-OO-10 | 3/8" | 8.9 | 121 | 150 | 18 | 35 | 83 | 120 | 0.254 |
| GZOT-OO-12 | 1/2" | 10.8 | 169 | 200 | 20 | 41 | 105 | 146 | 0.464 |
| GZOT-OO-16 | 5/8" | 14.6 | 210 | 250 | 25 | 54.2 | 138 | 190 | 1.041 |
| GZOT-OO-19 | 3/4" | 18.3 | 250 | 300 | 25 | 61.6 | 165 | 230 | 1.834 |
| GZOT-OO-22 | 7/8" | 22 | 262 | 320 | 31 | 74 | 170 | 241 | 2.87 |
| GZOT-OO-25 | 1" | 24 | 280 | 345 | 32 | 80 | 205 | 280 | 3.92 |
