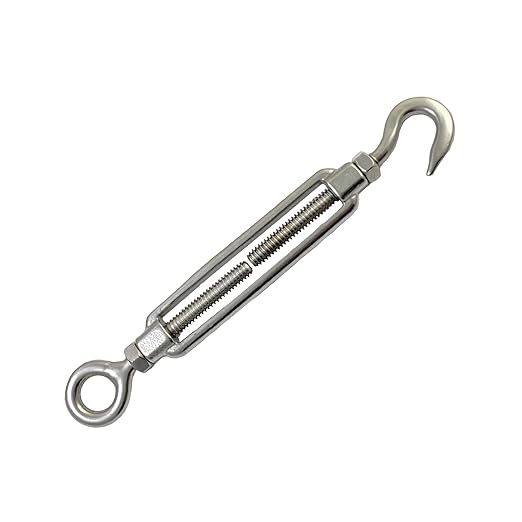

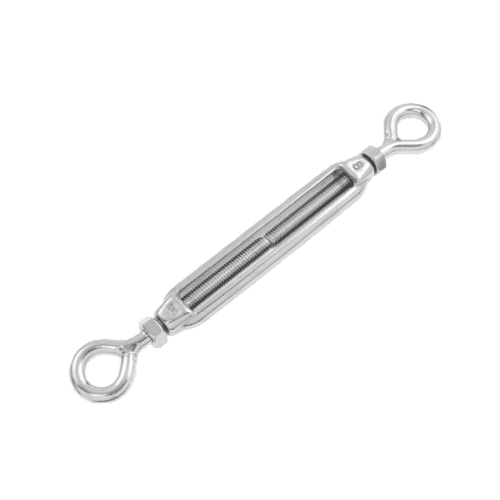

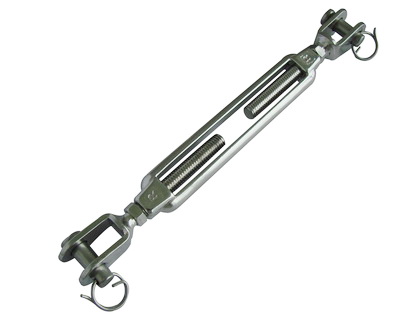

Types: Eye and Eye, Hook and Hook, Hook and Eye, Jaw and Jaw Material: SS304/SS316/SS316L Application:Marine Rigging, Wire Rope Systems, Tents and Canopies, Fencing and Barrier Systems, Agriculture, Art and Display Installations, Architecture ,Outdoor Adventure and Recreation. |
Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | BL(kg) |
| GZFMOT-JJ-05 | M5 | 8 | 9 | 70 | 113 | 14 | 750 |
| GZFMOT-JJ-06 | M6 | 8 | 10 | 90 | 135 | 19 | 1400 |
| GZFMOT-JJ-08 | M8 | 11 | 11 | 120 | 180 | 21 | 2200 |
| GZFMOT-JJ-10 | M10 | 13 | 13 | 150 | 220 | 24 | 3450 |
| GZFMOT-JJ-12 | M12 | 14 | 21 | 200 | 295 | 30 | 5000 |
| GZFMOT-JJ-16 | M16 | 17 | 25 | 200 | 325 | 38 | 8000 |
Item No. | Size | A(mm) | B(mm) | D(mm) | E(mm) | Max(mm) | BL(kg) |
| GZFMOT-OO-04 | M4 | 30 | 58 | 6.5 | 103 | 149.5 | 100 |
| GZFMOT-OO-05 | M5 | 34 | 70 | 8 | 124 | 183 | 130 |
| GZFMOT-OO-06 | M6 | 44 | 90 | 10 | 162 | 231 | 350 |
| GZFMOT-OO-08 | M8 | 58 | 120 | 14 | 210 | 308 | 650 |
| GZFMOT-OO-10 | M10 | 73 | 150 | 16 | 256 | 375 | 800 |
| GZFMOT-OO-12 | M12 | 97 | 200 | 18 | 330 | 450 | 1400 |
| GZFMOT-OO-14 | M14 | 110 | 225 | 20 | 360 | 490 | 2000 |
| GZFMOT-OO-16 | M16 | 122 | 250 | 26 | 400 | 615 | 2400 |
| GZFMOT-OO-18 | M18 | 147 | 300 | 30 | 495 | 710 | 3500 |
Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | BL(kg) |
| GZFMOT-OC-04 | M4 | 30 | 58 | 5 | 6.5 | 103 | 100 |
| GZFMOT-OC-05 | M5 | 34 | 70 | 6 | 8 | 124 | 130 |
| GZFMOT-OC-06 | M6 | 44 | 90 | 8 | 10 | 162 | 350 |
| GZFMOT-OC-08 | M8 | 58 | 120 | 12 | 14 | 210 | 650 |
| GZFMOT-OC-10 | M10 | 73 | 150 | 13 | 16 | 256 | 800 |
| GZFMOT-OC-12 | M12 | 97 | 200 | 15 | 18 | 330 | 1400 |
| GZFMOT-OC-14 | M14 | 110 | 225 | 18 | 20 | 360 | 2000 |
| GZFMOT-OC-16 | M16 | 122 | 250 | 20 | 26 | 400 | 2400 |
| GZFMOT-OC-20 | M20 | 147 | 300 | 25 | 30 | 495 | 3500 |
Item No. | Size | A(mm) | B(mm) | C(mm) | E(mm) | Max(mm) | BL(kg) |
| GZFMOT-CC-04 | M4 | 30 | 58 | 5 | 103 | 149.5 | 100 |
| GZFMOT-CC-05 | M5 | 34 | 70 | 6 | 124 | 183 | 130 |
| GZFMOT-CC-06 | M6 | 44 | 90 | 8 | 162 | 231 | 350 |
| GZFMOT-CC-08 | M8 | 58 | 120 | 12 | 210 | 308 | 650 |
| GZFMOT-CC-10 | M10 | 73 | 150 | 13 | 256 | 375 | 800 |
| GZFMOT-CC-12 | M12 | 97 | 200 | 15 | 330 | 400 | 1400 |
| GZFMOT-CC-14 | M14 | 110 | 225 | 18 | 360 | 490 | 2000 |
| GZFMOT-CC-16 | M16 | 122 | 250 | 20 | 400 | 615 | 2400 |
| GZFMOT-CC-20 | M20 | 147 | 300 | 25 | 495 | 710 | 3500 |
