DIN1480 turnbuckle is a versatile mechanical device widely used for adjusting the tension or length of ropes, cables, or wires in various applications. DIN1480 turnbuckle provides a secure grip on the cables or ropes, minimizing the risk of slippage or detachment under load. Material: SS304/SS316/SS316L Size: M5-M20 Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
DIN1480 Turnbuckle SS304/SS316/SS316L | ||||||||

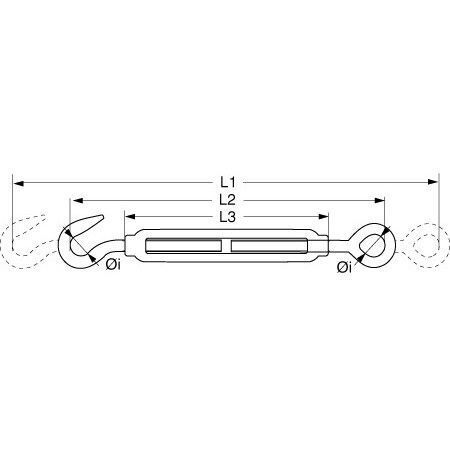

Item No | Size | L(mm) | L1(mm) | E(mm) | d1(mm) | d(mm) | WLL(kg) | WLL(KG) |
GZDINOT-OC-06 | M6 | 110 | 60 | 8.5 | 9 | M6 | 70 | 0.025 |
GZDINOT-OC-08 | M8 | 110 | 60 | 11 | 10 | M8 | 140 | 0.04 |
GZDINOT-OC-10 | M10 | 125 | 65 | 13.5 | 14 | M10 | 220 | 0.1 |
GZDINOT-OC-12 | M12 | 125 | 75 | 15.5 | 16 | M12 | 310 | 0.2 |
GZDINOT-OC-14 | M14 | 140 | 100 | 18.5 | 118 | M14 | 450 | 0.3 |
GZDINOT-OC-16 | M16 | 170 | 115 | 19 | 22 | M16 | 600 | 0.5 |
GZDINOT-OC-20 | M20 | 200 | 140 | 20.5 | 24 | M20 | 910 | 0.7 |
GZDINOT-OC-22 | M22 | 220 | 145 | 26 | 27 | M22 | 1100 | 0.8 |
GZDINOT-OC-24 | M24 | 255 | 160 | 26 | 27 | M24 | 1300 | 1.2 |
