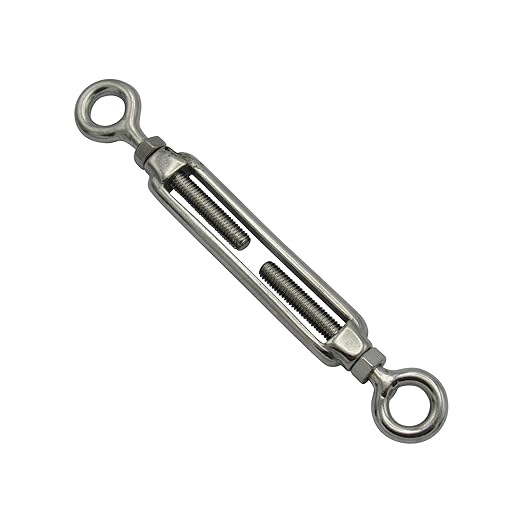

Open Body Turnbuckle has a design where the body of the turnbuckle is not fully enclosed, allowing easy access for attaching and adjusting the connecting elements. Open Body Turnbuckles typically consist of two threaded eye bolts or hooks on either end, connected by a body which can be turned to adjust the length and tension of the assembly. Types: Eye and Eye, Hook and Hook, Hook and Eye Material: SS304/SS316/SS316L Size: M5-M20 Application:Marine Rigging, Wire Rope Systems, Tents and Canopies, Fencing and Barrier Systems, Agriculture, Art and Display Installations, Architecture ,Outdoor Adventure and Recreation. |
EU TYPE OPENED BODY TURNBUCKLE OO SS304/SS316/SS316L | |||||||
Item No | Size | A(mm) | B(mm) | D(mm) | L(mm) | L1(mm) | WLL(KG) |
GZEUOT-OO-04 | M4 | 30 | 58 | 6.5 | 80 | 131 | 0.025 |
GZEUOT-OO-05 | M5 | 34 | 70 | 8 | 96 | 146 | 0.04 |
GZEUOT-OO-06 | M6 | 44 | 90 | 10 | 122 | 190 | 0.1 |
GZEUOT-OO-08 | M8 | 58 | 120 | 14 | 164 | 255 | 0.2 |
GZEUOT-OO-10 | M10 | 73 | 150 | 16 | 205 | 325 | 0.3 |
GZEUOT-OO-12 | M12 | 97 | 200 | 18 | 264 | 425 | 0.5 |
GZEUOT-OO-14 | M14 | 110 | 225 | 20 | 300 | 486 | 0.7 |
GZEUOT-OO-16 | M16 | 122 | 250 | 26 | 337 | 548 | 0.8 |
GZEUOT-OO-20 | M20 | 147 | 300 | 30 | 406 | 646 | 1.2 |
GZEUOT-OO-24 | M24 | 30 | 315 | 520 | M24 | 4.1 | 3 |
