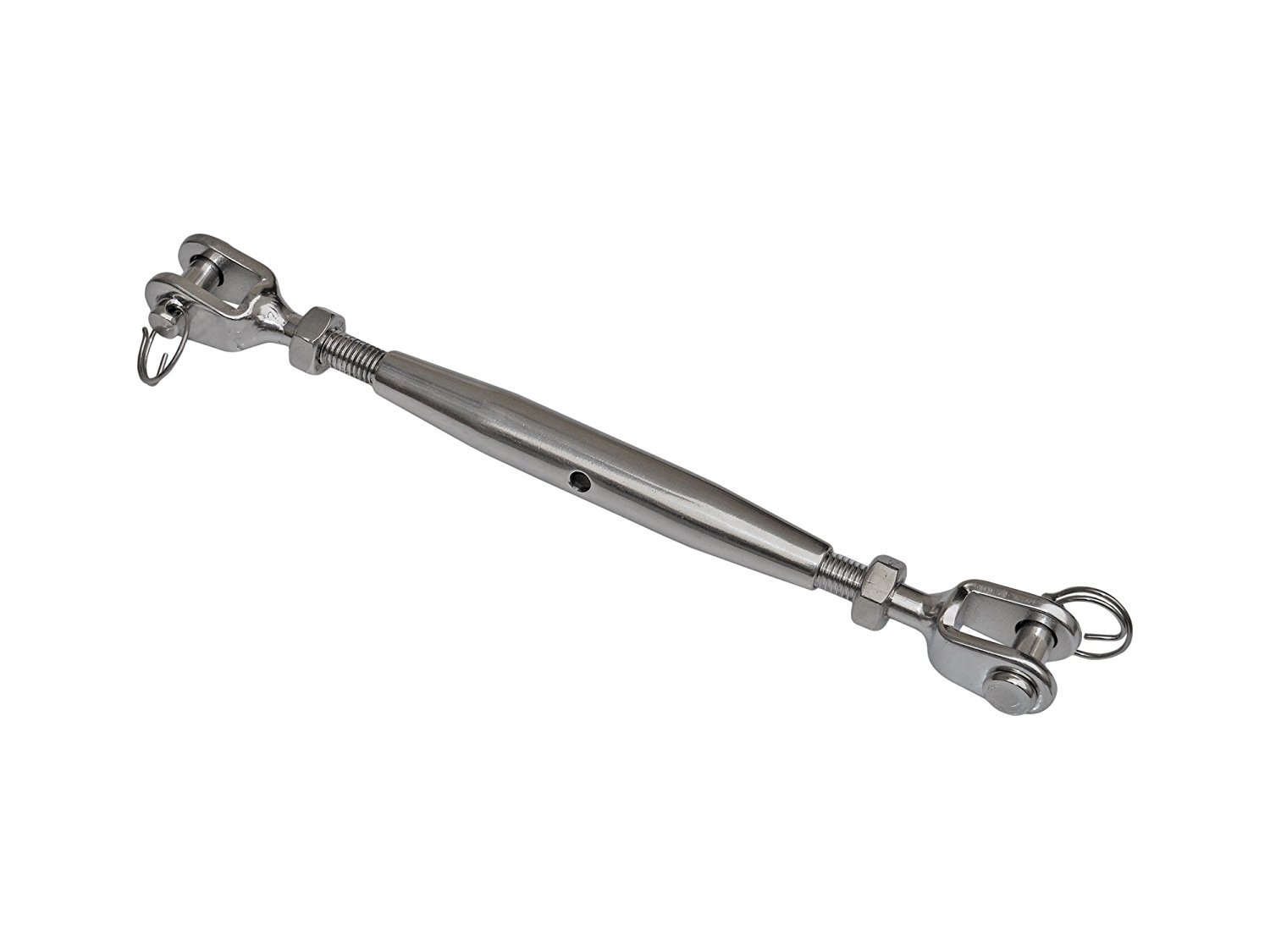

Jaw and Jaw Turnbuckle features a closed body and is available in sizes ranging from 3/16" to 5/8" to fit every project. These turnbuckles are made from grade 304/316/316L stainless steel for maximum corrosion resistance and durability, making them ideal for marine and industrial use. Material: SS304/SS316/SS316L Size: M5-M24 Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|
EU Type Closed Body Turnbuckle JAW & JAW SS304/SS316/SS316L | |||||||

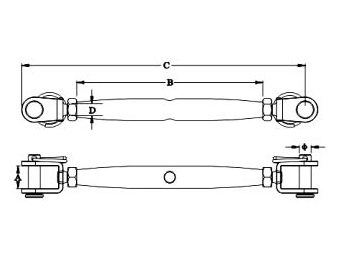

Item No | Size | A(mm) | B(mm) | C(mm) | D(mm) | kg/PC | BL(kg) |
GZEUCT-JJ-05 | M5 | 8 | 80 | 125 | M5 | 0.05 | 750 |
GZEUCT-JJ-06 | M6 | 9 | 92 | 140 | M6 | 0.082 | 1400 |
GZEUCT-JJ-08 | M8 | 11 | 112 | 170 | M8 | 0.165 | 2200 |
GZEUCT-JJ-10 | M10 | 12 | 120 | 190 | M10 | 0.3 | 3450 |
GZEUCT-JJ-12 | M12 | 14 | 150 | 240 | M12 | 0.53 | 5000 |
GZEUCT-JJ-14 | M14 | 15 | 170 | 290 | M14 | 0.66 | 6400 |
GZEUCT-JJ-16 | M16 | 17 | 190 | 314 | M16 | 1.17 | 8000 |
GZEUCT-JJ-20 | M20 | 20 | 220 | 360 | M20 | 1.9 | 10500 |
GZEUCT-JJ-22 | M22 | 30 | 270 | 450 | M22 | 3.1 | 25000 |
GZEUCT-JJ-24 | M24 | 30 | 315 | 520 | M24 | 4.1 | 30000 |
