Twist Shackle also known as a twisted shackle or screw pin shackle, is a type of shackle commonly used in rigging, lifting, and towing applications. Unlike standard shackles with a straight pin across the opening, a twist shackle features a pin that can be unscrewed from the shackle's body. Material: SS304/SS316/SS316L Size: M4-M12 Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|

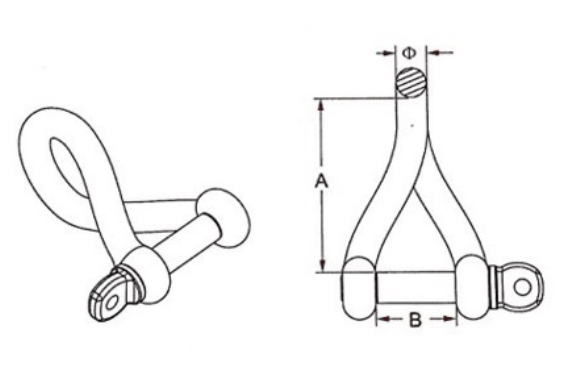

Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | D1(mm) | WLL(kg) |
| GZTWDS-04 | 4mm | 23 | 8 | 8 | 4 | 4 | 50 |
| GZTWDS-05 | 5mm | 28 | 10 | 10 | 5 | 5 | 90 |
| GZTWDS-06 | 6mm | 33 | 12 | 12 | 6 | 6 | 170 |
| GZTWDS-08 | 8mm | 44 | 16 | 16 | 8 | 8 | 250 |
| GZTWDS-10 | 10mm | 55 | 20 | 20 | 10 | 10 | 350 |
| GZTWDS-12 | 12mm | 66 | 24 | 25 | 12 | 12 | 420 |
