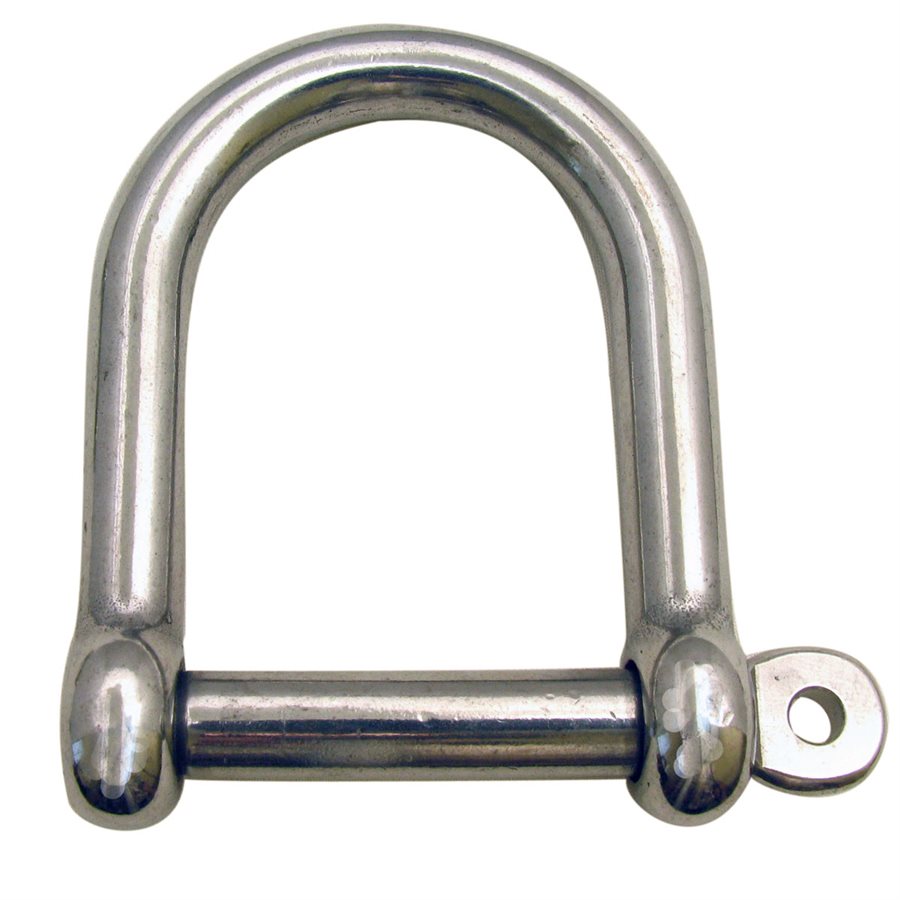

Wide D shackle is a type of shackle characterized by its wider-than-normal body, providing increased stability and load-bearing capacity compared to standard D shackles. The wider body of the shackle distributes loads more evenly across its surface, reducing the risk of deformation or failure under heavy loads. This design feature makes wide D shackles well-suited for applications involving significant weight or tension. Material: SS304/SS316/SS316L Size: M5-M12 Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|

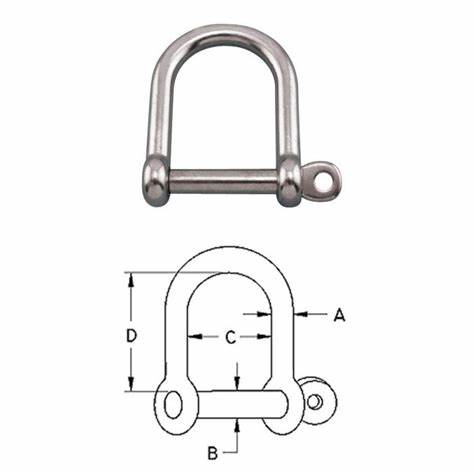

Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | B.L(kg) |
| GZWDDS-05 | 5mm | 5 | 5 | 25 | 20 | 240 |
| GZWDDS-06 | 6mm | 6 | 6 | 24 | 33 | 340 |
| GZWDDS-08 | 8mm | 8 | 8 | 28 | 31 | 600 |
| GZWDDS-10 | 10mm | 10 | 10 | 40 | 55 | 750 |
| GZWDDS-12 | 12mm | 12 | 12 | 48 | 66 | 1000 |
