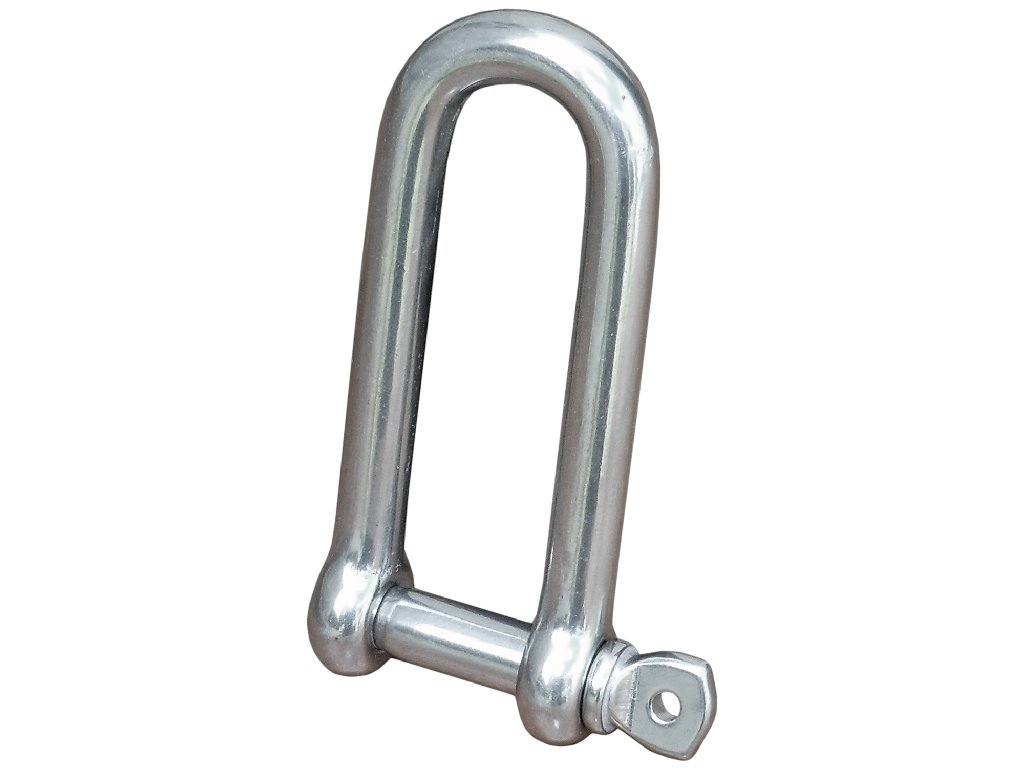

Long D shackle, also known as an extended D shackle, is a type of shackle commonly used in rigging and lifting applications. Its design is similar to that of a standard D shackle but with a longer body. The extended length provides additional clearance or space between the two attachment points, allowing for the connection of larger or bulkier objects. Material: SS304/SS316/SS316L Size: M4-M12 Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|

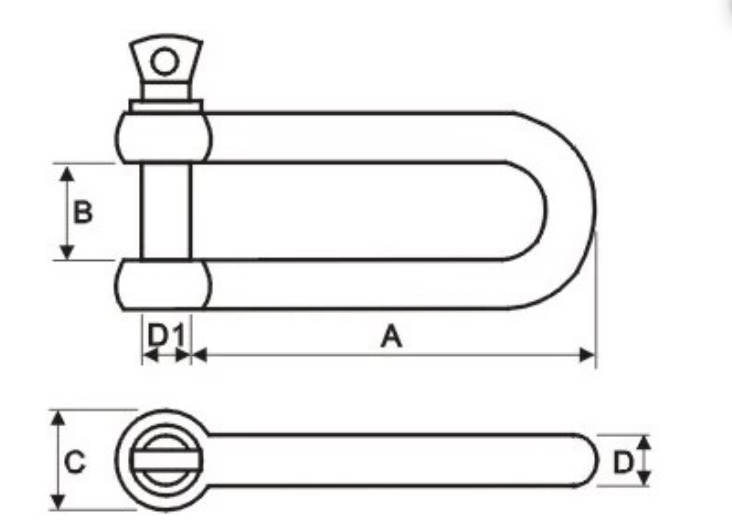

Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | D1(mm) | WLL(kg) |
| GZLGDS-04 | 4mm | 32 | 8 | 8 | 4 | 4 | 50 |
| GZLGDS-05 | 5mm | 40 | 10 | 10 | 5 | 5 | 90 |
| GZLGDS-06 | 6mm | 48 | 12 | 12 | 6 | 6 | 170 |
| GZLGDS-08 | 8mm | 64 | 16 | 16 | 8 | 8 | 250 |
| GZLGDS-10 | 10mm | 78 | 20 | 20 | 10 | 10 | 350 |
| GZLGDS-12 | 12mm | 96 | 24 | 24 | 12 | 12 | 420 |
