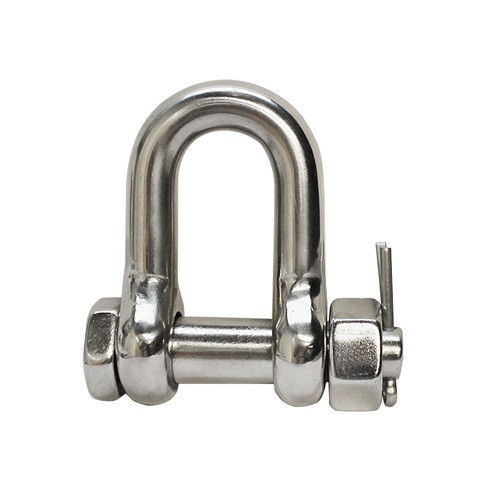

G2150 D Shackle With Safety Pin is a type of shackle commonly used in various industries for lifting, rigging, and securing heavy loads. This shackle is designed in a D-shape, with a straight pin across the opening of the "D." The safety pin is a key feature of this shackle, providing an additional level of security by preventing the pin from accidentally dislodging during use. G2150 D shackle with a safety pin is widely used in industries such as construction, maritime, and heavy machinery, where reliable and secure connections are essential for safe operation. Material: SS304/SS316/SS316L Size: 3/16”-3” Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
| ||||||||

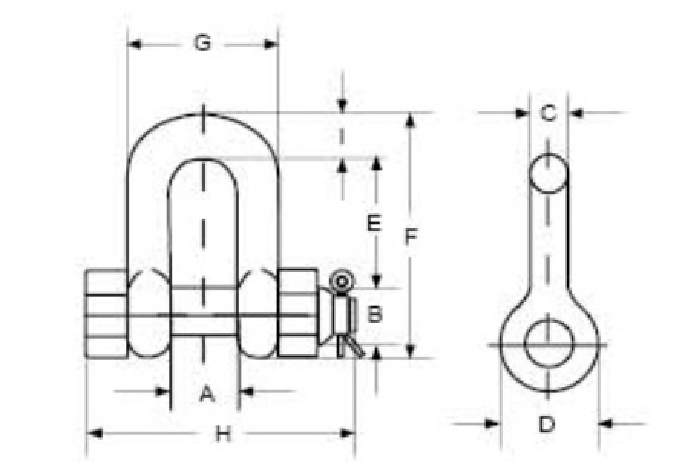

| Item No | Size | A | B | C | D | E | F | G | H | I | WLL | Weight |
| (mm) | (Ton) | (kg/ea) | ||||||||||
| GZSSDS-G2150-1 | 3/16" | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 37.2 | 24.9 | 4.85 | 0.3 | 0.03 |
| GZSSDS-G2150-2 | 1/4" | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 46.7 | 32.5 | 6.35 | 0.5 | 0.05 |
| GZSSDS-G2150-3 | 5/16" | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 53 | 37.3 | 7.85 | 0.75 | 0.1 |
| GZSSDS-G2150-4 | 3/8" | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 63 | 45.2 | 9.65 | 1 | 0.15 |
| GZSSDS-G2150-5 | 7/16" | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 74 | 51.5 | 11.2 | 1.5 | 0.22 |
| GZSSDS-G2150-6 | 1/2" | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 83.5 | 58.5 | 12.7 | 2 | 0.36 |
| GZSSDS-G2150-7 | 5/8" | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 106 | 74.5 | 17.5 | 3.25 | 0.76 |
| GZSSDS-G2150-8 | 3/4" | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 126 | 89 | 20.6 | 4.75 | 1.23 |
| GZSSDS-G2150-9 | 7/8" | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 148 | 102 | 24.6 | 6.5 | 1.79 |
| GZSSDS-G2150-10 | 1" | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 167 | 119 | 26.9 | 8.5 | 2.57 |
| GZSSDS-G2150-11 | 1-1/8" | 46 | 31.8 | 108 | 28.7 | 74 | 68.5 | 190 | 131 | 31.8 | 9.5 | 3.75 |
| GZSSDS-G2150-12 | 1-1/4" | 51.5 | 35.1 | 119 | 31.8 | 82.5 | 76 | 210 | 146 | 35.1 | 12 | 5.31 |
| GZSSDS-G2150-13 | 1-3/8" | 57 | 38.1 | 133 | 35.1 | 92 | 84 | 233 | 162 | 38.1 | 13.5 | 7.18 |
| GZSSDS-G2150-14 | 1-1/2" | 60.5 | 41.4 | 146 | 38.1 | 98.5 | 92 | 254 | 175 | 41.1 | 17 | 9.43 |
| GZSSDS-G2150-15 | 1-3/4" | 73 | 51 | 178 | 44.5 | 127 | 106 | 313 | 225 | 57 | 25 | 15.4 |
| GZSSDS-G2150-16 | 2" | 82.5 | 57 | 197 | 51 | 146 | 122 | 348 | 253 | 61 | 35 | 23.7 |
| GZSSDS-G2150-17 | 2-1/2" | 44.6 | 105 | 70 | 267 | 66.5 | 184 | 145 | 453 | 327 | 55 | 44.61 |
| GZSSDS-G2150-18 | 3" | 127 | 82.5 | 330 | 76 | 200 | 165 | 546 | 365 | 92 | 85 | 70 |
