G209 Forged Bow Shackle, are also described as Anchor Shackles. Forged Bow Shackle, refers to a dee shackle that conforms to the G209 classification. US Type G209 Forged Bow Shackles are available in various load capacities to suit different applications and load requirements. Stainless Steel G209 Forged Bow Shacklesoffer durability, corrosion resistance, and reliable performance, making them suitable for a wide range of applications where high-quality lifting and rigging equipment is required. Material: SS304/SS316/SS316L Size: 1/4”-3” Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|

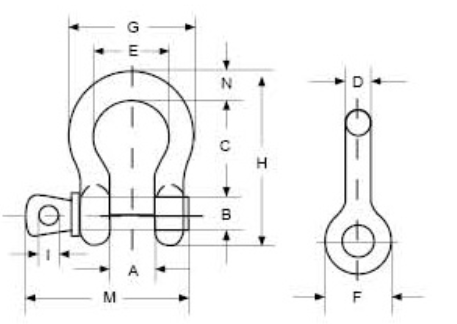

| Item No | Size | A | B | C | D | E | F | G | H | I | M | N | WLL |
| (mm) | (Ton) | ||||||||||||
| GZSSBS-G209-1 | 3/16" | 9.65 | 6.35 | 22.4 | 4.85 | 15.2 | 14.2 | 24.9 | 37.3 | 2.06 | 28.4 | 4.85 | 0.3 |
| GZSSBS-G209-2 | 1/4" | 11.9 | 7.85 | 28.7 | 6.35 | 19.8 | 15.5 | 32.5 | 46.7 | 4.85 | 35.1 | 6.35 | 0.5 |
| GZSSBS-G209-3 | 5/16" | 13.5 | 9.65 | 31 | 7.85 | 21.3 | 19.1 | 37.3 | 53 | 5.6 | 42.2 | 7.85 | 0.75 |
| GZSSBS-G209-4 | 3/8" | 16.8 | 11.2 | 36.6 | 9.65 | 26.2 | 23.1 | 45.2 | 63 | 6.35 | 51.5 | 9.65 | 1 |
| GZSSBS-G209-5 | 7/16" | 19.1 | 12.7 | 42.9 | 11.2 | 29.5 | 26.9 | 51.5 | 74 | 7.85 | 60.5 | 11.2 | 1.5 |
| GZSSBS-G209-6 | 1/2" | 20.6 | 16 | 47.8 | 12.7 | 33.3 | 30.2 | 58.5 | 83.5 | 9.65 | 68.5 | 12.7 | 2 |
| GZSSBS-G209-7 | 5/8" | 26.9 | 19.1 | 60.5 | 16 | 42.9 | 38.1 | 74.5 | 106 | 11.2 | 85 | 17.5 | 3.25 |
| GZSSBS-G209-8 | 3/4" | 31.8 | 22.4 | 71.5 | 19.1 | 51 | 46 | 89 | 126 | 12.7 | 101 | 20.6 | 4.75 |
| GZSSBS-G209-9 | 7/8" | 36.6 | 25.4 | 84 | 22.4 | 58 | 53 | 102 | 148 | 12.7 | 114 | 24.6 | 6.5 |
| GZSSBS-G209-10 | 1" | 42.9 | 28.7 | 95.5 | 25.4 | 68.5 | 60.5 | 119 | 167 | 14.2 | 129 | 26.9 | 8.5 |
| GZSSBS-G209-11 | 1-1/8" | 46 | 31.8 | 108 | 29.5 | 74 | 68.5 | 131 | 190 | 16 | 142 | 31.8 | 9.5 |
| GZSSBS-G209-12 | 1-1/4" | 51.5 | 35.1 | 119 | 32.8 | 92.5 | 76 | 146 | 210 | 17.5 | 156 | 35.1 | 12 |
| GZSSBS-G209-13 | 1-3/8" | 57 | 38.1 | 133 | 36.1 | 92 | 84 | 162 | 233 | 19.1 | 174 | 38.1 | 13.5 |
| GZSSBS-G209-14 | 1-1/2" | 60.5 | 41.4 | 146 | 39.1 | 98.5 | 92 | 175 | 254 | 20.6 | 187 | 41.1 | 17 |
| GZSSBS-G209-15 | 1-3/4" | 73 | 51 | 178 | 46.7 | 127 | 106 | 225 | 313 | 25.4 | 231 | 57 | 25 |
| GZSSBS-G209-16 | 2" | 82.5 | 57 | 197 | 53 | 146 | 122 | 253 | 348 | 31 | 263 | 61 | 35 |
| GZSSBS-G209-17 | 2-1/2" | 105 | 70 | 267 | 69 | 184 | 145 | 327 | 453 | 35.1 | 330 | 79.5 | 55 |
