G2130 Bow shackle with a safety pin is a type of shackle commonly used in various industries for lifting, rigging, and securing heavy loads. The safety pin is a key feature of this shackle, providing an additional level of security by preventing the pin from accidentally dislodging during use. G2130 Bow shackle with a safety pin is widely used in industries such as construction, maritime, and heavy machinery, where reliable and secure connections are essential for safe operation. Material: SS304/SS316/SS316L Size: 3/16”-3” Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|

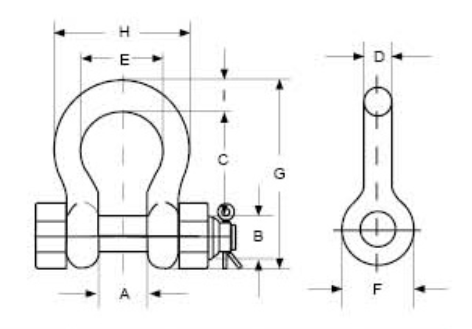

| Item No | Size | A | B | C | D | E | F | G | H | I | N | WLL |
| (mm) | (T) | |||||||||||
| GZSSBS-G2130-1 | 1/4" | 11.9 | 7.85 | 6.35 | 46 | 19.1 | 40.4 | 24.6 | 39.6 | 6.35 | 4.85 | 0.5 |
| GZSSBS-G2130-2 | 5/16" | 13.5 | 9.65 | 7.85 | 19.1 | 25.4 | 48.5 | 29.5 | 46.2 | 7.85 | 6.35 | 0.75 |
| GZSSBS-G2130-3 | 3/8" | 16.8 | 11.2 | 9.65 | 23.1 | 31 | 58.5 | 35.8 | 55 | 9.65 | 7.85 | 1 |
| GZSSBS-G2130-4 | 7/16" | 19.1 | 12.7 | 11.2 | 26.9 | 36.1 | 67.5 | 41.1 | 63.5 | 11.2 | 9.65 | 1.5 |
| GZSSBS-G2130-5 | 1/2" | 20.6 | 16 | 12.7 | 30.2 | 41.4 | 77 | 46 | 71 | 12.7 | 11.2 | 2 |
| GZSSBS-G2130-6 | 5/8" | 26.9 | 19.1 | 16 | 38.1 | 51 | 95.5 | 58.5 | 89.5 | 16 | 12.7 | 3.25 |
| GZSSBS-G2130-7 | 3/4" | 31.8 | 22.4 | 19.1 | 46 | 60.5 | 115 | 103 | 20.6 | 17.5 | 4.75 | |
| GZSSBS-G2130-8 | 7/8" | 36.6 | 25.4 | 22.4 | 53 | 71.5 | 135 | 81 | 120 | 24.6 | 20.6 | 6.5 |
| GZSSBS-G2130-9 | 1" | 42.9 | 28.7 | 25.4 | 60.5 | 81 | 151 | 93.5 | 135 | 25.4 | 24.6 | 8.5 |
| GZSSBS-G2130-10 | 1-1/8" | 46 | 31.8 | 28.7 | 68.5 | 91 | 172 | 103 | 150 | 31.8 | 26.9 | 9.5 |
| GZSSBS-G2130-11 | 1-1/4" | 51.5 | 35.1 | 31.8 | 76 | 100 | 191 | 115 | 165 | 35.1 | 31.8 | 12 |
| GZSSBS-G2130-12 | 1-3/8" | 57 | 38.1 | 35.1 | 84 | 111 | 210 | 127 | 183 | 38.1 | 35.1 | 13.5 |
| GZSSBS-G2130-13 | 1-1/2" | 60.5 | 41.4 | 38.1 | 92 | 122 | 230 | 137 | 196 | 41.1 | 38.1 | 17 |
| GZSSBS-G2130-14 | 1-3/4" | 73 | 51 | 44.5 | 106 | 146 | 279 | 162 | 230 | 54 | 41.1 | 25 |
| GZSSBS-G2130-15 | 2" | 82.5 | 57 | 51 | 122 | 172 | 312 | 184 | 264 | 51 | 57 | 35 |
| GZSSBS-G2130-16 | 2-1/2" | 105 | 70 | 66.5 | 145 | 203 | 377 | 238 | 344 | 66.5 | 61 | 55 |
