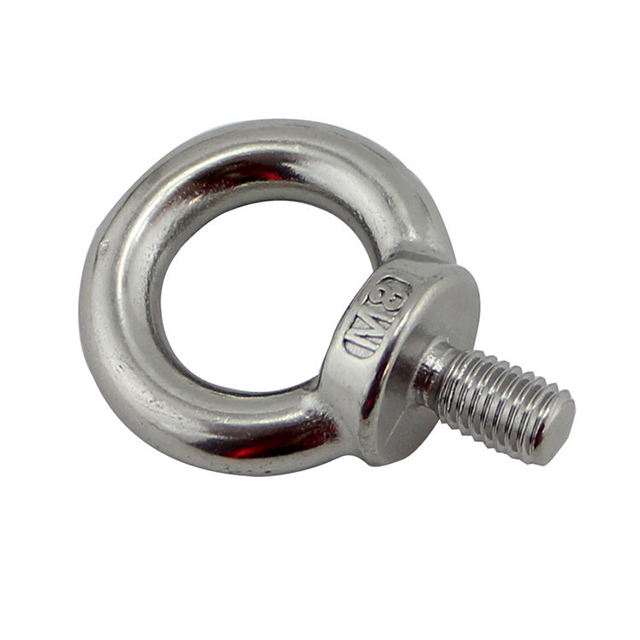

DIN 582 eye bolt is a threaded fastener with a looped head, used for lifting or securing loads. It's made of strong materials like steel and comes in various sizes with specified load capacities. The looped head allows for easy attachment of lifting equipment. Material: SS304/SS316/SS316L Size: M6-M24 Application: Construction, Marine,Transportation,Agriculture,Entertainment and Events. |
|
Item No. | Size | A | B | C | D | E | WWL | WT |
(mm) | (kn) | (kg) | ||||||
GZSSEB-DIN580-05 | M5 | 16 | 16 | 6 | 11 | 39 | 70 | 0.02 |
GZSSEB-DIN580-06 | M6 | 19.5 | 19.5 | 7.6 | 14 | 49 | 140 | 0.045 |
GZSSEB-DIN580-08 | M8 | 24.5 | 24.5 | 9.4 | 17 | 59.5 | 230 | 0.086 |
GZSSEB-DIN580-10 | M10 | 29 | 29 | 11.5 | 22 | 73 | 340 | 0.148 |
GZSSEB-DIN580-12 | M12 | 35 | 34.5 | 13.6 | 26.5 | 86.5 | 700 | 0.255 |
GZSSEB-DIN582-16 | M16 | 40 | 38.5 | 15.3 | 29.5 | 96.5 | 1200 | 0.378 |
GZSSEB-DIN580-20 | M20 | 50 | 50 | 20 | 37.5 | 127.0 | 1800 | 0.78 |
