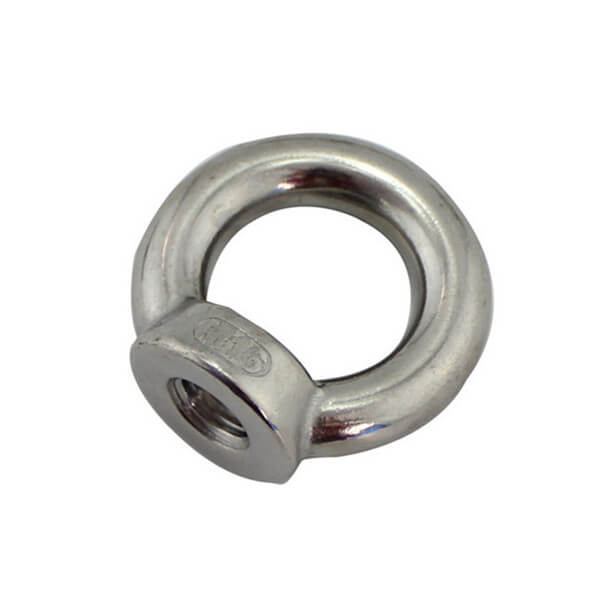

DIN 580 eye nut is a threaded fastener with a looped head, used for lifting or securing loads. It's made of strong materials like steel and comes in various sizes with specified load capacities. The looped head allows for easy attachment of lifting equipment onto threaded bolts or anchor points. Material: SS304/SS316/SS316L Size: M6-M24 Application: Construction, Marine,Transportation,Agriculture,Entertainment and Events. |
|
Item No. | Size | A(mm) | B(mm) | C(mm) | D(mm) | WWL(kn) | WT(kg) |
GZSSEN-DIN-05 | M5 | 13 | 14.5 | 4.7 | 25 | 50 | 0.014 |
GZSSEN-DIN-06 | M6 | 16 | 16 | 6 | 28 | 70 | 0.021 |
GZSSEN-DIN-08 | M8 | 20 | 20 | 8 | 35 | 140 | 0.043 |
GZSSEN-DIN-10 | M10 | 24.5 | 24.5 | 9.4 | 42.5 | 230 | 0.076 |
GZSSEN-DIN-12 | M12 | 29 | 29 | 11.5 | 51.5 | 340 | 0.13 |
GZSSEN-DIN-16 | M16 | 35 | 35 | 13.6 | 61.5 | 700 | 0.21 |
GZSSEN-DIN-20 | M20 | 40 | 39 | 15.3 | 70.5 | 1200.0 | 0.31 |
GZSSEN-DIN-24 | M24 | 50 | 49 | 19.3 | 88 | 1800 | 0.628 |
