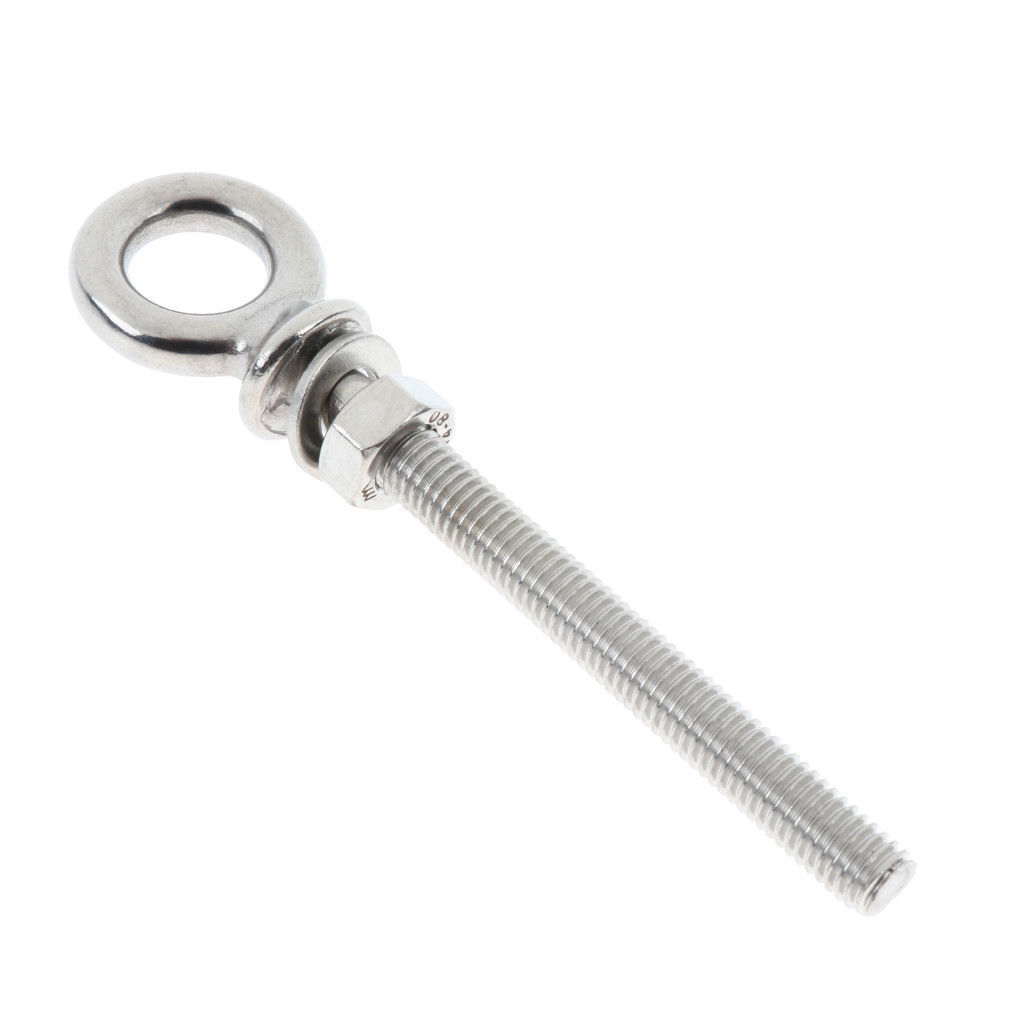

Shoulder eye bolt with long thread: Bolt with welded loop head and extended threading. Strong and durable. Ideal for heavy lifting and rigging applications. Material: SS304/SS316/SS316L Size: M5-M24 Application: Construction, Marine,Transportation,Agriculture,Entertainment and Events. |
|
Item No | Size | A | B | C | D | WWL | WT |
(mm) | (kn) | (kg) | |||||
GZSSLEB-06 | M6X60 | 85 | 60 | 55 | 13 | 80 | 0.025 |
GZSSLEB-08 | M8X80 | 111 | 80 | 75 | 15 | 150 | 0.058 |
GZSSLEB-10 | M10X100 | 137 | 100 | 85 | 17 | 250 | 0.12 |
