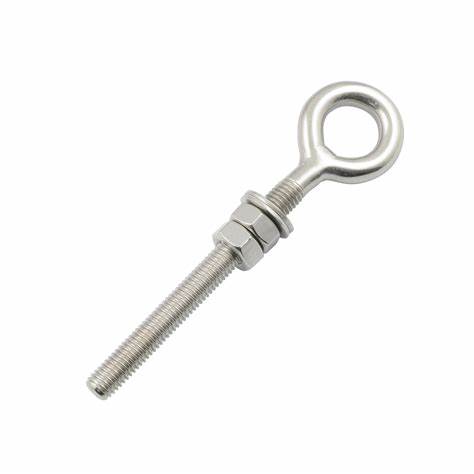

Welded eye bolt with long thread: Bolt with welded loop head and extended threading. Strong and durable. Ideal for heavy lifting and rigging applications. Material: SS304/SS316/SS316L Size: M5-M24 Application: Construction, Marine,Transportation,Agriculture,Entertainment and Events. |
|
Item No | Size | A | B | C | D | E | F | WT |
(mm) | (kg) | |||||||
GZSSWEB-06 | M6*60 | 91 | 60 | 16.5 | 5 | 12 | M6 | 0.03 |
GZSSWEB-08 | M8*80 | 119 | 80 | 20 | 5.7 | 15 | M8 | 0.058 |
GZSSWEB-08 | M8*100 | 139 | 100 | 20 | 5.7 | 15 | M8 | 0.064 |
GZSSWEB-10 | M10*100 | 147.5 | 100 | 25 | 7 | 19 | V10 | 0.116 |
GZSSWEB-10 | M10*120 | 167.5 | 120 | 25 | 7 | 19 | M10 | 0.126 |
GZSSWEB-12 | M12*120 | 177.5 | 120 | 30 | 9 | 22.5 | M12 | 0.209 |
GZSSWEB-12 | M12*130 | 187.5 | 130 | 30 | 9 | 22.5 | M12 | 0.218 |
