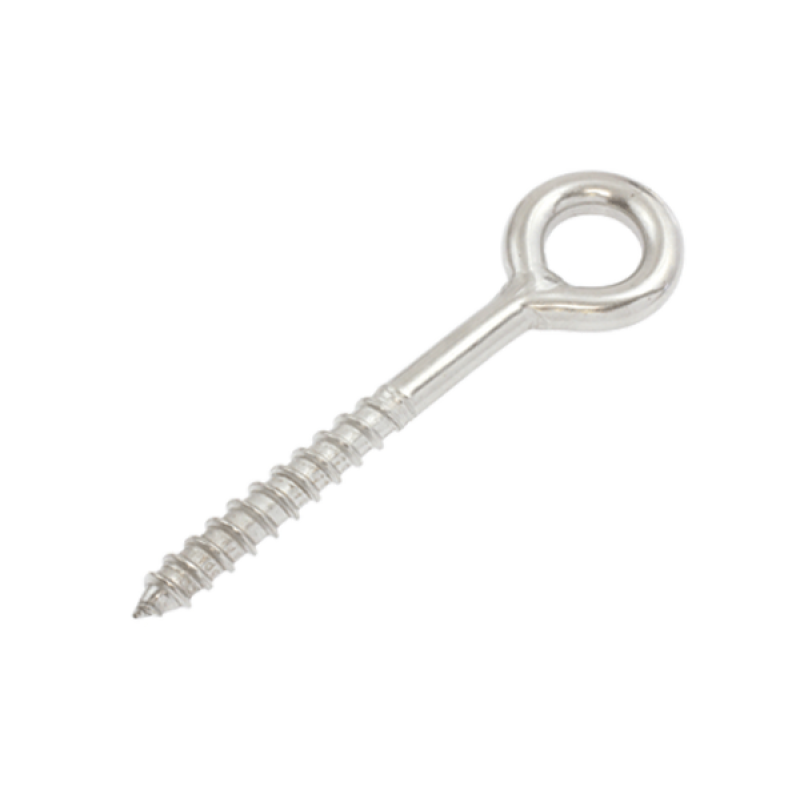

Welded eye screw: Screw with welded loop head. Strong and durable. Used for hanging lightweight items or securing objects in place. Material: SS304/SS316/SS316L Size: M5-M24 Application: Construction, Marine,Transportation,Agriculture,Entertainment and Events. |
|

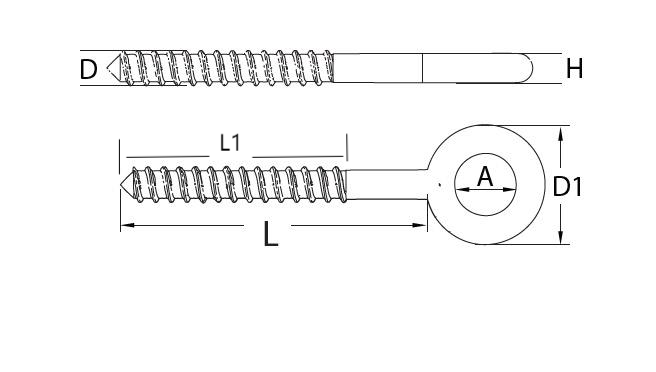

Item No | Size（mm) | D | L | L1 | A | D1 | H | Pull Out(kg) | Weight |
GZSSWLS-0880 | 8×80 | 8 | 80 | 55 | 16 | 32 | 8 | 1060 | 55g |
GZSSWLS-08130 | 8×130 | 8 | 130 | 67 | 16 | 32 | 8 | 1090 | 72g |
GZSSWLS-1060 | 10×60 | 10 | 60 | 50 | 20 | 40 | 10 | 1135 | 82g |
GZSSWLS-1080 | 10×80 | 10 | 80 | 55 | 20 | 40 | 10 | 1255 | 90g |
GZSSWLS-10100 | 10×100 | 10 | 100 | 65 | 20 | 40 | 10 | 1460 | 101g |
GZSSWLS-10130 | 10×130 | 10 | 130 | 70 | 20 | 40 | 10 | 1895 | 119g |
GZSSWLS-10150 | 10×150 | 10 | 150 | 90 | 20 | 40 | 10 | 2260 | 131g |
