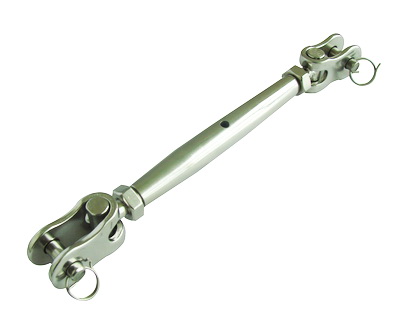

A closed body turnbuckle toggle toggle is a mechanical device used to adjust the tension or length of ropes, cables, or wires in various applications such as sailing, construction, and rigging. The toggle toggle feature refers to the presence of two toggle ends, which are larger fittings designed for easy attachment and secure anchoring of cables or ropes. Material: SS304/SS316/SS316L Size: M5-M20 Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|
Item No. | SIZE(mm) | L(mm) | L1(mm) | M(thread) | B.L.(kgs) |
GZCT-TT-05 | 5 | 131 | 80 | M5 | 500 |
GZCT-TT-06 | 6 | 148 | 90 | M6 | 900 |
GZCT-TT-08 | 8 | 180 | 105 | M8 | 1650 |
GZCT-TT-10 | 10 | 220 | 125 | M10 | 2500 |
GZCT-TT-12 | 12 | 258 | 150 | M12 | 3700 |
GZCT-TT-14 | 14 | 295 | 165 | M14 | 5000 |
GZCT-TT-16 | 16 | 335 | 190 | M16 | 6950 |
GZCT-TT-20 | 20 | 385 | 210 | M20 | 9600 |
