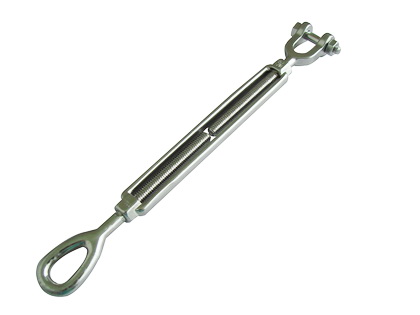

The Eye type US turnbuckle is a versatile mechanical device widely used for adjusting the tension or length of ropes, cables, or wires in various applications. Eye-Jaw turnbuckle provides a secure grip on the cables or ropes, minimizing the risk of slippage or detachment under load. Material: SS304/SS316/SS316L Size: 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”. Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|
HOOK EYE TYPE - US TURNBUCKLE SS304/SS316/SS316L | |||||||
Item No | Size(inch) | A(inch) | B(inch) | C(inch) | D(inch) | lbs/pc | WLL(T) |
GZUSRS-HE-1/4" | 1/4" | 1/4" | 4" | 7.5" | 0.37" | 0.44 | 0.13 |
GZUSRS-HE-5/16" | 5/16" | 5/16" | 4.5” | 8.5" | 0.44" | 0.62 | 0.22 |
GZUSRS-HE-3/8" | 3/8" | 3/8" | 6" | 10.75" | 0.5" | 0.8 | 0.32 |
GZUSRS-HE-1/2" | 1/2" | 1/2" | 6" | 12" | 0.63" | 1.7 | 0.45 |
GZUSRS-HE-5/8" | 5/8" | 5/8" | 6" | 13.5" | 0.63" | 2.78 | 0.72 |
GZUSRS-HE-3/4" | 3/4" | 3/4" | 6" | 15.5" | 0.95" | 4.41 | 1 |
GZUSRS-HE-1" | 1" | 1" | 6" | 19" | 1.2" | 9.33 | 1.6 |
GZUSRS-HE-1" | 1" | 1" | 12" | 24" | 1.2" | 12.33 | 1.6 |
GZUSRS-HE-1 1/4" | 1 1/4" | 1 1/4" | 12" | 24" | 1.44" | 20.87 | 2.2 |
