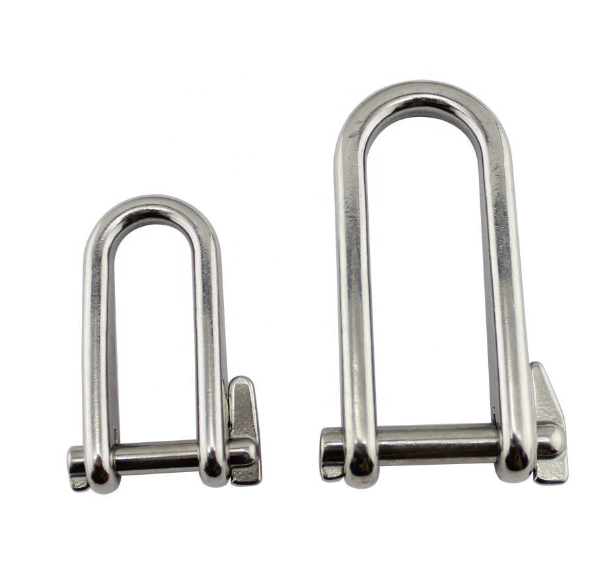

Halyard Shackle with key pin is a specialized type of shackle designed specifically for use in sailing applications, particularly for attaching halyards (lines used to raise sails) to sailboat sails.
This type of shackle typically consists of a halyard shackle mechanism combined with a key pin for secure attachment. The key pin serves as a locking mechanism to prevent accidental opening of the shackle under tension or vibration. Material: SS304/SS316/SS316L Size: 5mm,6mm 8mm Application: Sailing, Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|
|
Item No. | Size | A(mm) | B(mm) | D(mm) | B.L(kg) |
GZSSHS-KP-5MM | 5mm | 40 | 13 | 5 | 950 |
GZSSHS-KP-6MM | 6mm | 49 | 16 | 6 | 1380 |
GZSSHS-KP-8MM | 8mm | 62 | 22 | 8 | 2300 |
