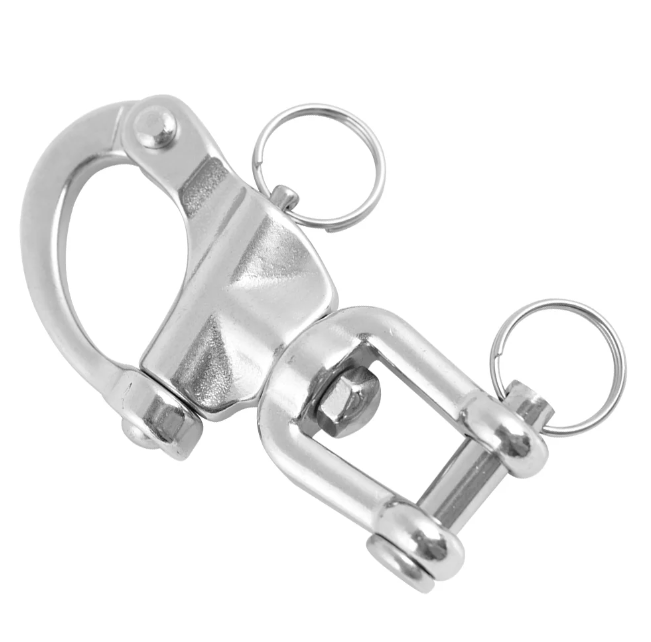

Snap shackle with swivel fork is a specialized type of shackle used in rigging and marine applications. It combines the functionality of a snap shackle with the added feature of a swiveling fork at one end. The swivel fork allows for greater flexibility and ease of use, as it can rotate freely, preventing twisting or tangling of attached lines or rigging. This feature is particularly useful in situations where the connected lines need to move or pivot independently. Material: SS304/SS316/SS316L Size: 70mm, 87mm, 128mm Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|
Item No. | Size | A(mm) | B(mm) | L(mm) | WLL(kg) | ||
GZSSSS-SWE-70MM | 70MM | 18 | 12.5 | 71 | 450 | ||
GZSSSS-SWE-87MM | 87MM | 20 | 16.5 | 89 | 650 | ||
GZSSSS-SWE-128MM | 128MM | 27 | 24 | 128 | 950 | ||
