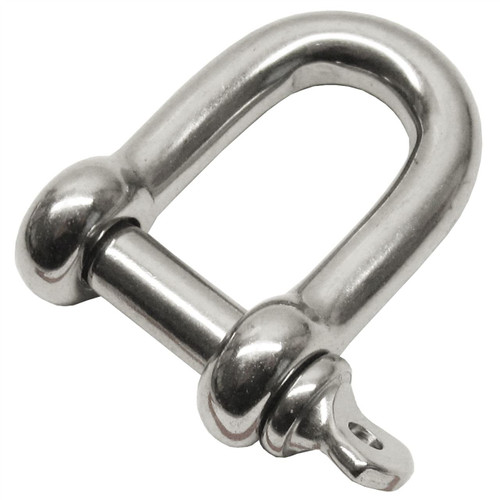

European Type D Shackle, known as a collar pin shackle, is a specific design of shackle commonly used in rigging, lifting, and various other applications where a secure connection point is required. EU Type D Shackles find use in a wide range of industries and applications, including marine, construction, mining, forestry, and transportation. EU Type D Shackle is a versatile and reliable component widely used in various industries for its robust design, ease of use, and ability to handle a range of loads and applications. P Material: SS304/SS316/SS316L Size: M4-M38 Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|

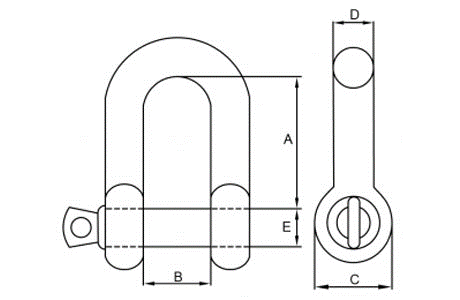

| Item No | Size | A | B | C | D | E | MBL |
| (mm) | (kn) | ||||||
| GZSSDS-EU-04 | 4mm | 16 | 8 | 8 | 4 | 4 | 5.8 |
| GZSSDS-EU-05 | 5mm | 20 | 10 | 10 | 5 | 5 | 9.1 |
| GZSSDS-EU-06 | 6mm | 24 | 12 | 12 | 6 | 6 | 13.2 |
| GZSSDS-EU-08 | 8mm | 32 | 16 | 16 | 8 | 8 | 23.7 |
| GZSSDS-EU-10 | 10mm | 40 | 20 | 20 | 10 | 10 | 37.3 |
| GZSSDS-EU-12 | 12mm | 48 | 24 | 24 | 12 | 12 | 54.9 |
| GZSSDS-EU-14 | 14mm | 56 | 28 | 28 | 14 | 14 | 74.8 |
| GZSSDS-EU-16 | 16mm | 64 | 32 | 32 | 16 | 16 | 97.7 |
| GZSSDS-EU-18 | 18mm | 72 | 36 | 36 | 18 | 18 | 136.1 |
| GZSSDS-EU-20 | 20mm | 76 | 40 | 40 | 20 | 20 | – |
| GZSSDS-EU-22 | 22mm | 88 | 44 | 44 | 22 | 22 | 184.7 |
| GZSSDS-EU-25 | 25mm | 100 | 50 | 50 | 25 | 25 | – |
| GZSSDS-EU-28 | 28mm | 112 | 56 | 56 | 28 | 28 | 223.8 |
| GZSSDS-EU-32 | 32mm | 128 | 64 | 64 | 32 | 32 | 353.6 |
| GZSSDS-EU-36 | 36mm | 144 | 72 | 72 | 36 | 36 | – |
| GZSSDS-EU-38 | 38mm | 152 | 76 | 76 | 38 | 38 | – |
