Japanese Type Dee Shackle, also known simply as the Dee Shackle or D Shackle, is a type of shackle commonly used in rigging, lifting, and fastening applications. While the design and functionality are similar to the European Type D Shackle, there might be slight differences in specifications or manufacturing standards. Japanese Type Dee Shackles usually feature a screw pin closure mechanism. This involves a threaded pin that screws into the shackle's body to secure the connection. Some variations may have a bolt or bolt and nut design instead. Material: SS304/SS316/SS316L Size: M4-M38 Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
|

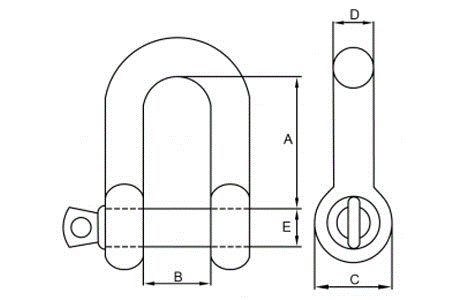

| Item No. | Size | A | B | C | D | E | WLL |
| (mm) | (kGS) | ||||||
| GZSSDS-JIS-04 | 4mm | 14 | 8 | 8 | 4 | 4 | 50 |
| GZSSDS-JIS-05 | 5mm | 16 | 10 | 10 | 5 | 5 | 80 |
| GZSSDS-JIS-06 | 6mm | 22 | 12 | 12 | 6 | 6 | 100 |
| GZSSDS-JIS-08 | 8mm | 27 | 16 | 16 | 8 | 8 | 200 |
| GZSSDS-JIS-10 | 10mm | 31 | 20 | 20 | 10 | 10 | 320 |
| GZSSDS-JIS-12 | 12mm | 40 | 24 | 24 | 12 | 12 | 520 |
| GZSSDS-JIS-14 | 14mm | 46 | 28 | 28 | 14 | 14 | 700 |
| GZSSDS-JIS-16 | 16mm | 52 | 32 | 32 | 16 | 16 | 800 |
| GZSSDS-JIS-18 | 18mm | 58 | 36 | 36 | 18 | 18 | 990 |
| GZSSDS-JIS-20 | 20mm | 64 | 40 | 40 | 20 | 20 | 1100 |
| GZSSDS-JIS-22 | 22mm | 75 | 44 | 44 | 22 | 22 | 1500 |
| GZSSDS-JIS-25 | 25mm | 83 | 50 | 50 | 25 | 25 | 2100 |
| GZSSDS-JIS-28 | 28mm | 96 | 56 | 56 | 28 | 28 | 3000 |
| GZSSDS-JIS-32 | 32mm | 114 | 64 | 64 | 32 | 32 | 3500 |
| GZSSDS-JIS-36 | 36mm | 116 | 72 | 72 | 36 | 36 | 4600 |
| GZSSDS-JIS-38 | 38mm | 152 | 76 | 76 | 38 | 38 | 5000 |
