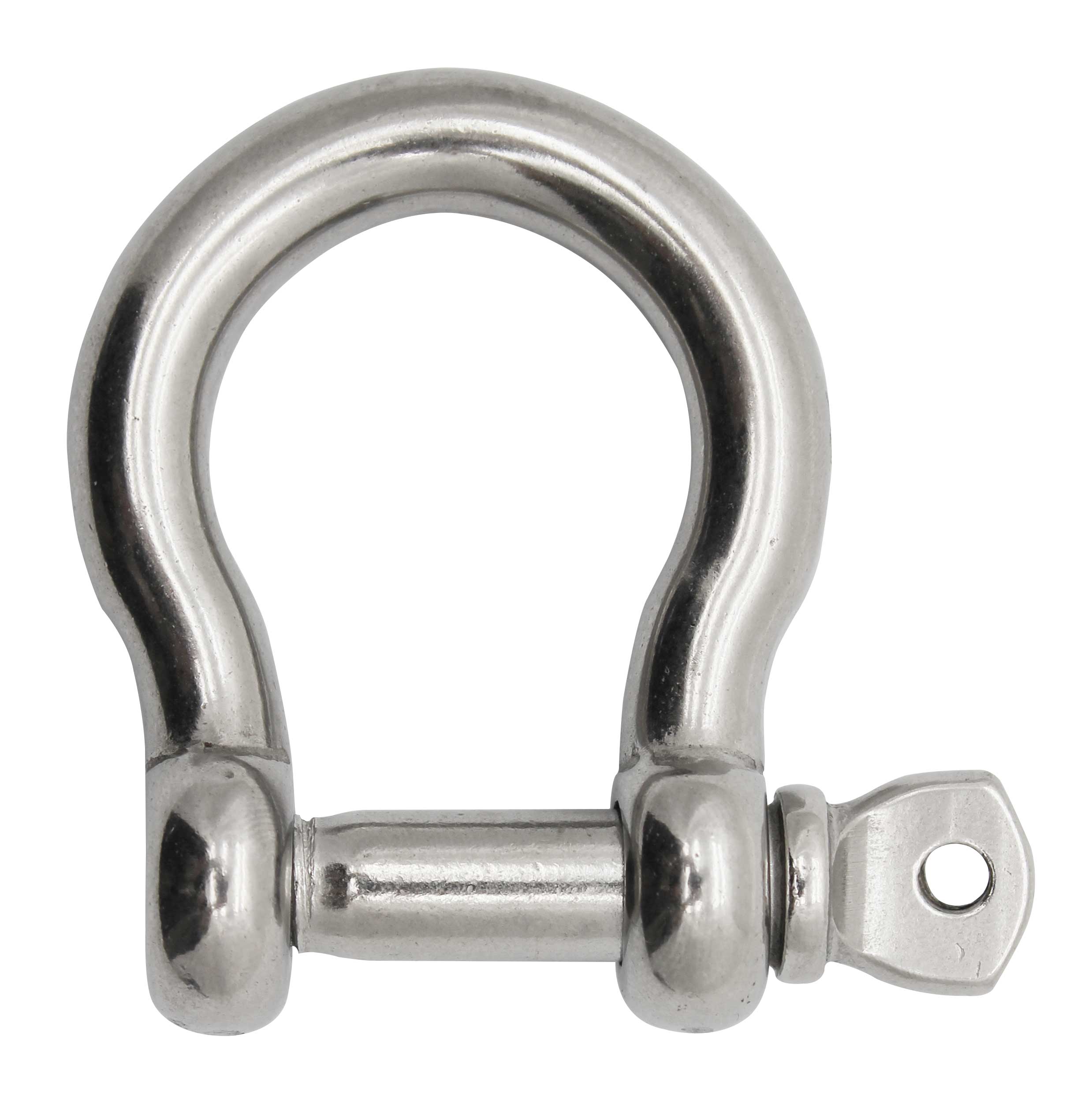

European Type Bow Shackle has a bow-shaped design, with curved or U-shaped body. This design allows for a larger clearnance between the two ends of the shackle, making it suitable for applications where attaching ultiple items or larger connections is necessary. Proper maintenance is essential to ensure the longevity and performance of Bow Shackles. Regular inspection for signs of wear, corrosion, or deformation is necessary, along with proper cleaing and lubrication as needed. Material: SS304/SS316/SS316L Size:M4-M36 Application: Wire Rope Tensioning, Marine, Guy Wire Tensioning, Architectural Tension Structures, Industrial Rigging and Lifting. |
| |||

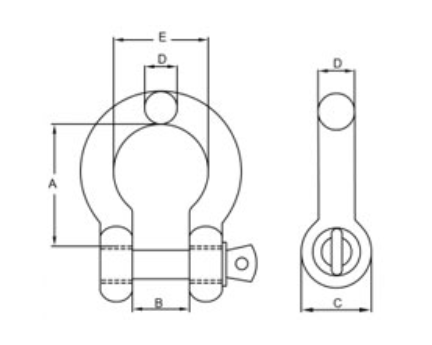

| Item No. | Size | A | B | C | D | E | MBL |
| (mm) | (kn) | ||||||
| GZSSBS-EU-04 | 4mm | 16 | 8 | 8 | 4 | 14 | 5.8 |
| GZSSBS-EU-05 | 5mm | 19 | 10 | 10 | 5 | 16 | 9.1 |
| GZSSBS-EU-06 | 6mm | 25 | 12 | 12 | 6 | 20 | 13.2 |
| GZSSBS-EU-08 | 8mm | 32 | 16 | 16 | 8 | 24 | 23.7 |
| GZSSBS-EU-10 | 10mm | 38 | 20 | 20 | 10 | 28 | 37.3 |
| GZSSBS-EU-12 | 12mm | 48 | 24 | 24 | 12 | 36 | 54.9 |
| GZSSBS-EU-14 | 14mm | 50 | 28 | 28 | 14 | 38 | 74.8 |
| GZSSBS-EU-16 | 16mm | 55 | 32 | 32 | 16 | 10 | 97.7 |
| GZSSBS-EU-18 | 18mm | 62 | 36 | 36 | 18 | 43 | 136.1 |
| GZSSBS-EU-20 | 20mm | 68 | 40 | 40 | 20 | 46 | 184.7 |
| GZSSBS-EU-22 | 22mm | 82 | 44 | 44 | 22 | 56 | 223.8 |
| GZSSBS-EU-25 | 25mm | 95 | 50 | 50 | 25 | 68 | – |
| GZSSBS-EU-28 | 28mm | 108 | 56 | 56 | 28 | 74 | – |
| GZSSBS-EU-32 | 32mm | 120 | 64 | 64 | 32 | 84 | – |
| GZSSBS-EU-36 | 36mm | 135 | 72 | 72 | 36 | 92 | – |
