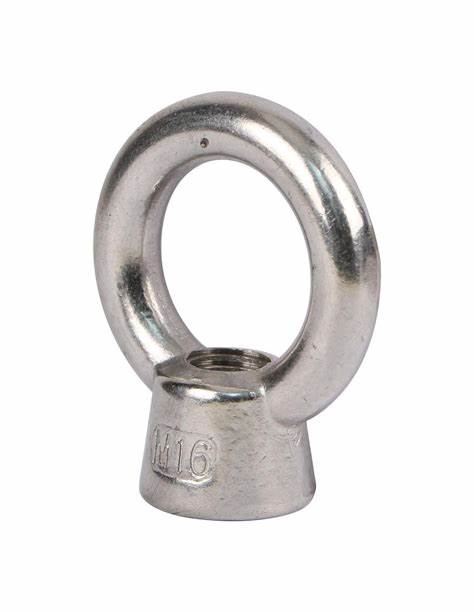

JIS1169 eye nut is a Japanese lifting nut. It has a looped head for lifting gear attachment. Strong material, various sizes, load capacities marked. Easy to install on threaded bolts or studs. Material: SS304/SS316/SS316L Size: M5-M24 Application: Construction, Marine,Transportation,Agriculture,Entertainment and Events. |
|
Item No | Size | A | B | C | D | WWL | WT |
(mm) | (kn) | (kg) | |||||
GZSSEN-JIS1169-04 | M4 | 10 | 10 | 4 | 21 | 30 | 0.007 |
GZSSEN-JIS1169-05 | M5 | 13 | 12 | 5 | 26.5 | 40 | 0.011 |
GZSSEN-JIS1169-06 | M6 | 16.5 | 12 | 5 | 31 | 50 | 0.015 |
GZSSEN-JIS1169-08 | M8 | 20 | 15 | 5.7 | 39 | 80 | 0.025 |
GZSSEN-JIS1169-10 | M10 | 25 | 19 | 7 | 47.5 | 150 | 0.05 |
GZSSEN-JIS1169-12 | M12 | 30 | 22.5 | 9 | 57.5 | 220 | 0.093 |
GZSSEN-JIS1169-16 | M16 | 36 | 28 | 11 | 69 | 450.0 | 0.164 |
GZSSEN-JIS1169-20 | M20 | 40 | 32 | 15 | 79 | 630 | 0.291 |
GZSSEN-JIS1169-24 | M24 | 50 | 41 | 18 | 102 | 950 | 0.573 |
